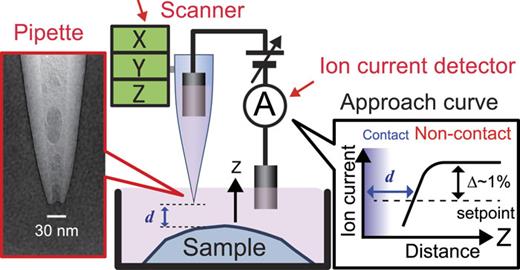

Development of high-speed ion conductance microscopy Available

Tapping mode atomic force microscopy (AFM)¹ has been widely used to visualize biological samples in aqueous solution with high spatial resolution. However, when the sample is very soft, like eukaryotic cell surfaces, the intermittent tip-sample contact significantly deforms the sample and hence blurs its image.^2–4 Moreover, when the sample is extremely fragile, it is often seriously damaged.^4,5 Scanning ion conductance microscopy (SICM) was introduced to overcome this problem.⁶ SICM uses as a probe an electrolyte-filled pipette with a nanopore at the tip end and measures an ion current that flows between an electrode inside the pipette and another electrode in the external bath solution. The ionic current resistance between the pipette tip and the sample surface (referred to as the access resistance) increases when the tip approaches the sample. This sensitivity of access resistance to the tip-sample distance enables imaging of the sample surface without mechanical tip-sample contact^7,8 (Fig. 1). To improve the fundamental performances of SICM, several devices have recently been introduced, including a technique to control the pore size of pipettes^9–11 and a feedback control technique based on tip-sample distance modulation.^12–14 Moreover, the SICM nanopipette has recently been used to measure the surface charge density^15–21 and the electrochemical activity^22,23 as well as to deliver species.^24–27 Thus, SICM is now becoming a useful tool in biological studies, especially for characterizing single cells with very soft and fragile surfaces.²⁸

However, the imaging speed of SICM is low; it takes from a few minutes to a few tens of minutes to capture an SICM image, which is in striking contrast to AFM. High-speed AFM is already established²⁹ and has been used to observe a variety of protein molecules and organelles in dynamic action.³⁰ The slow performance of SICM is due mainly to a low signal-to-noise ratio (SNR) of ion current sensing, resulting in its low detection bandwidth (and hence low feedback bandwidth). Moreover, the low resonant frequency of the Z-scanner also limits the feedback bandwidth.

When the vertical scan of the pipette towards the sample is performed with velocity $v$_z, the time delay of feedback control t_delay causes an overshoot of the vertical scan by t_delay × $v$_z. This overshoot distance should be smaller than the closest tip-sample distance (d_c) to be maintained during imaging (see the approach curve in Fig. 1). That is,

An appropriate size of d_c is related to the pipette geometry, such as the tip aperture radius r_a, the cone angle θ_c, and the outer radius of the tip r_o,^7,31,32 but d_c ≈ 2r_a is typically used to achieve the highest possible resolution. The size of t_delay can be roughly estimated from the resonant frequency of the Z-scanner f_z and the bandwidth of ion current detection B_id, as t_delay ≈ 1/f_z + 1/B_id. In typical SICM setups, the values of these parameters are r_a ≈ 20 nm, f_z ≈ 1 kHz, and B_id ≈ 1 kHz, yielding $v$_z ≤ 20 μm/s. In the representative SICM imaging mode referred to as the hopping mode,³³ the tip-approach and retract cycle is repeated for a distance (hopping amplitude) of slightly larger than the sample height, h_s. For example, when $v$_z = 20 μm/s is used for the sample with h_s ≈ 1 μm, it takes at least >50 ms for pixel acquisition, which depends on the retraction speed. This pixel acquisition time corresponds to an imaging acquisition time longer than 8.3 min for 100 × 100 pixel resolution.³⁴ When the pipette retraction speed can be set at much larger than the approach speed $v$_z, the imaging acquisition time can be improved but not much.

Several groups have attempted to increase $v$_z.^13,34–38 One of the approaches used is to mount a shear piezoactuator with a high resonant frequency (but with a small stroke length) on the Z-scanner and this fast piezoactuator is used as a “brake booster”;^34,35 that is, this piezoactuator is activated only in the initial retraction phase, where the tip is in close proximity to the surface. This method could cancel an overshooting displacement and therefore increase $v$_z by 10-fold. Another approach is to increase B_id by the improvement of the SNR of current signal detection with the use of a current-source amplification scheme³⁷ or by the use of the AC bias voltage between the electrodes (the AC current in phase with the AC bias voltage is used as an input for the feedback control).^13,38 This bias voltage modulation method is further improved by capacitance compensation.¹⁴ The improvement of SICM speed performance by these methods is, however, limited to a few times at most. Very recently, two studies demonstrated fast imaging of live cells with the use of their high-speed SICM (HS-SICM) systems.^39,40 However, one of these studies used the temporal tip-sample contact to alter hopping amplitude,³⁹ while the other used pipettes with r_a = 80–100 nm and abandoned the optical observation of the sample.⁴⁰ Note that, in SICM, the temporal resolution has a trade-off relationship with the spatial resolution, as in the cases of other measurement techniques. Thus far, no attempts have been made to increase both f_z and B_id extensively, without compromise of the spatial resolution and the noncontact imaging capability of SICM.

Here, we report the development of HS-SICM and demonstrate its high-speed and high resolution imaging capability. The image rate was improved by a factor of ∼100 or slightly more. This remarkable enhancement in speed was achieved by two improved performances: (i) fast pipette positioning achieved with the developed fast scanner and vibration suppression techniques and (ii) an enhanced SNR of current detection by reduction of the ionic resistance arising from the inside of the pipette (referred to as the pipette resistance). The improved f_z of the Z-scanner resulted in a mechanical response time of ∼3 µs, corresponding to a ∼100-fold improvement over conventional SICM systems. The SNR of current detection was improved by a factor of ∼8, enhancing B_id from 1 to 100 kHz or slightly higher. The HS-SICM system was demonstrated to be able to capture topographic images of low-height biological samples at 0.9–5 s/frame and live cells at 20–28 s/frame. These high imaging rate performances are compatible with a spatial resolution of 15–23 nm.

The speed of pipette approach towards the sample (⁠$v$_z) is limited, as expressed by Eq. (1). As $v$_z depends on f_z and B_id, the improvement on both f_z and B_id is required to achieve HS-SICM. To increase f_z, we need a fast Z-scanner for displacing the pipette along its length. Note that all commercially available Z-scanners for SICM have f_z < 10 kHz. Besides, we need to establish a method to mount the pipette (∼15 mm in length) to the Z-scanner in order to minimize the generation of undesirable vibrations of the pipette. We previously developed a fast XYZ scanner with f_z ≈ 100 kHz, a resonant frequency of ∼2.3 kHz in the XY directions, and stroke distances of ∼6 μm and ∼34 μm for Z and XY, respectively.⁴¹ In this study, we further improved the dynamic response of this fast scanner. Considering this high f_z with improved dynamic response, we need to increase B_id to the level of ∼100 kHz. As the ion current change caused by an altered tip-sample distance is generally small (∼1 pA), the current signal noise largely limits B_id. At a high frequency regime (>10 kHz), the dominant noise source is the interaction between the amplifier’s current noise and the total capacitance at the input.^42–44 Therefore, we have to lower the total capacitance and increase the current signal to achieve B_id ≈ 100 kHz, without increasing the pipette pore size.

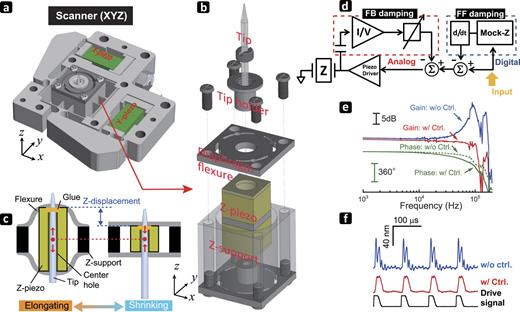

The structure of our fast scanner developed is shown in Figs. 2(a)–2(c). A key mechanism for minimizing unwanted Z-scanner vibrations is momentum cancellation; the hollow Z-piezoactuator is sandwiched with a pair of identical diaphragmlike flexures so that the center of mass of the Z-piezoactuator hardly changes during its fast displacement (supplementary material, SI 1). The pipette is mechanically connected only with the top flexure through being glued to the top clamp. Thanks to these designs, no noticeable resonance peaks are induced except at the resonant frequency of the Z-piezoactuator [Fig. 2(e)]. We achieved a product value of 6 μm (maximum displacement) × 100 kHz (resonant frequency) in this Z-scanner, which exceeds more than 10-fold the value of conventional designs of the SICM Z-scanner, 25 μm × 1–2 kHz. In the present study, we further improved the dynamic response of the Z-scanner. The sharp resonant peak shown in Fig. 2(e) (blue line) induces unwanted vibrations. In fact, the application of a squarelike-waveform voltage to the Z-scanner [black line in Fig. 2(f)] generated an undesirable ringing displacement of the Z-scanner [blue line in Fig. 2(f)]. To damp this ringing, we developed feedforward (FF) and feedback (FB) control methods [Fig. 2(d)]. The FF control system was implemented in a field-programmable-gate-array (FPGA). The gain controlled output signal from a mock Z-scanner (an electric circuit) with a transfer function similar to that of the real Z-scanner was first differentiated and then subtracted from the signal input to the Z-piezodriver.⁴⁵ Although this method was effective in reducing the Q-factor of the Z-scanner, the drift behavior of the transfer function of the real Z-scanner would affect the reduced Q-factor during long-term scanning. To suppress the drift effect, the FB control implemented in an analog circuit was added as follows. The velocity of the Z-scanner displacement was measured using the transimpedance amplifier via a small capacitor of ∼1 pF positioned near the Z-scanner. The gain-controlled velocity signal was subtracted from the output of the FF controller. In this way, too fast movement of the Z-scanner was prevented,⁴⁶ resulting in nearly complete damping of unwanted vibrations, as shown with the red lines of Figs. 2(e) and 2(f). Thus, the open-loop response time of the Z-scanner, Q/πf_z, was improved from ∼18.5 µs to 1.8 µs (critical damping). Note that the measured Z-scanner displacements (blue and red lines) include the latency of the laser vibrometer used (2 µs) (supplementary material, SI 1, Fig. S2). The FF/FB damping control was also applied to the XY scanners to improve their dynamic response (supplementary material, SI 1, Fig. S3).

We describe here a method to improve B_id by increasing the SNR of current signal sensing. In the frequency region >10 kHz, the dominant noise source of the ion current detector is the total capacitance at the transimpedance amplifier input, ΣC,^42,43

where I_RMS represents a root-mean-square current noise. The electrode-wiring and the pipette capacitance C_p dominate the total capacitance. As C_p derives from the part of the pipette immersed in solution, thicker wall pipettes are useful in reducing C_p. We used quartz capillaries with a wall thickness of 0.5–0.7 mm. The total capacitance in our setup was estimated to be ∼5 pF (supplementary material, SI 2), yielding I_RMS ∼ 8 pA at B_id = 100 kHz (although I_RMS was ∼1.2 pA at B_id = 10 kHz), which was still too large. Then, we decided to increase the ion current to improve the SNR further. Since the bias voltage (V_b) larger than a typical value of ±0.5 V induces an unstable ion current,⁴⁷ we need to reduce the pipette resistance (R_p). The ion current I_i through the pipette opening is approximately described as

where d is the tip-surface distance and R_a is the access resistance that depends on d.⁴⁸ In Eq. (3), the surface charge-dependent ion current rectification in the pipette is not considered.^49,R_p is usually ∼100 times larger than R_a even at d ≈ d_c and, therefore, the reduction of R_p directly increases I_i. To reduce R_p, we examined the ion concentration gradient (ICG) method; a pipette back-filled with a high salt solution is immersed in a low salt solution. Since the pipette opening is very small, a concentration gradient is expected to be formed only in the close vicinity of the pipette opening. Although several studies have been performed on ICG from the viewpoint of its effect on the ion current rectification in nanopores,^50–52 it is unclear whether or not the ICG method is really useful and applicable to SICM, as the physiological salt concentration used in the external bath solutions is relatively high. To check this issue, we first performed a finite element method (FEM) simulation using the coupled Poisson–Nernst–Planck (PNP) equations that have been widely adopted to study the transport behavior of charged species.^20,53,54 Complete details of our PNP simulation setup are described in the supplementary material, SI 3 and Methods. Figures 3(a) and 3(b) show a FEM simulation result obtained for the spatial profile of the total ion concentration $\left(c_{{\mathrm{K}}^{+}}+c_{{\mathrm{C}\mathrm{l}}^{-}}\right)/2$⁠, when 4M KCl and physiological 0.15M KCl solutions were used for the inside and outside of the pipette, respectively. As seen there, the region of ICG is confined in a small volume around the pipette opening, while the outside salt concentration is maintained at ∼0.23M and <0.17M in the regions distant from the opening by ∼2r_a and >4r_a, respectively. Figure 3(c) (square plots) shows a simulation result for changes of ion conductance 1/R_p when the KCl concentration inside the pipette (c_in) was altered, while the outside bulk KCl concentration (c_out) was kept at 0.15M. This result was very consistent with that obtained experimentally [red plots in Fig. 3(c)]. The value of 1/R_p at c_in = 4M was ∼8 times larger than that at c_in = 0.15M. We also confirmed that the conditions of c_in = 4M and c_out = 0.15M generate a steady current with |V_b| ≤ 0.5 V and, hence, allow stable SICM measurements for 7.5 nm ≤ r_a ≤ 25 nm. Note that the high KCl concentration region can be confined to a smaller space when a negative bias voltage is used because of an ion current rectification effect of the negatively charged pipette [Figs. 3(d) and 3(e)].

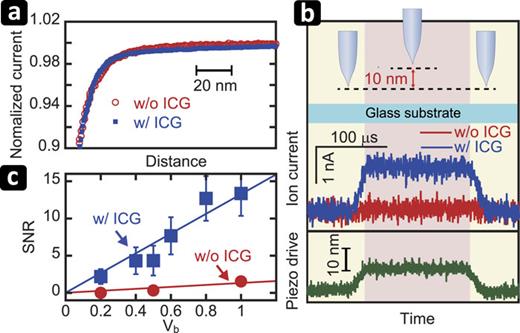

To confirm the SNR enhancement of I_i by ICG formed by the use of c_in = 4M and c_out = 0.15M, we measured the dynamic responses of I_i to the quick change in d under V_b = 0.5 V, in the presence and absence of ICG. To measure the responses, the pipette with r_a = 10 nm was initially positioned at a Z-point showing 5% reduction of I_i [see Fig. 4(a)]. Then, the pipette was quickly retracted by 10 nm within 14 µs and after a while quickly approached by 10 nm within 14 µs [Fig. 4(b), top] by the application of a driving signal with a rectanglelike waveform [Fig. 4(b), bottom] to the developed Z-scanner. The ion current responses measured using the transimpedance amplifier with B_id = 400 kHz are shown in Fig. 4(b) (middle). With ICG, a clear response was observed (blue line), whereas without ICG no clear response was observed (red line) due to a large noise floor at this high bandwidth. With ICG, the SNR of the detected current response increased linearly with increasing V_b [Fig. 4(c), blue plots; supplementary material, SI 4, Fig. S8], although the instability of detected I_i was confirmed at V_b > 0.5 V (not shown). Thus, the SNR of current detection was improved ∼8 times by the ICG method [Fig. 4(c)].

The rising and falling times of the measured current changes with ICG were indistinguishable from those of the piezodriver voltage [Fig. 4(b), middle and bottom], indicating no noticeable delay (≲2 µs) in the measured current response. Note that the physically occurring (not measured) response of current change (or the rearrangement of ion distribution) must be much faster than the response of the measured current changes, because the actual response is governed by the local mass transport time in the nanospace around the pipette opening. The response time is roughly estimated to be 85 ns by adopting the diffusion time (τ) required for ion transport by a distance of 2r_a = 20 nm: $2r_{\mathrm{a}}=\sqrt{\pi D\tau }$⁠, where D is the nearly identical diffusion coefficient of K⁺ and Cl⁻ in water (∼1.5 × 10⁻⁹ m²/s).⁵⁵

Contrary to our expectation, the normalized approach curves (I_i vs d) were nearly identical between the pipettes with and without ICG [Fig. 4(a)] although their R_p values were largely different. This indicates a nearly identical R_a/R_p ratio between the two cases. This result was confirmed by the FEM simulations performed by the use of various surface charge densities of the pipette and substrate in a range of 0–20 mC/m² (supplementary material, SI 5).

In the final part of this subsection, we considered how the SICM measurements with ICG would affect the membrane potential of the live cells in a physiological solution. The ICG modulates the local ion concentrations around the pipette tip end, which might induce a change in the local membrane potential only when the tip is in close vicinity to the cell surface. However, it is difficult to perform experimental measurements of such a transient change in the local membrane potential. Here, we estimated this change for nonexcitable HeLa cells used in this study and typical excitable cells, using the Goldman-Hodgkin-Katz voltage equation.^56,57 In this estimation, the extracellular ion concentrations around the tip end were obtained by the FEM simulations. Complete details of this analysis are described in the supplementary material, SI 3. For both cell types, we found that their local membrane potentials were changed by the pipette tip with ICG to various extents depending on the value of V_b (see the supplementary material, SI 3, Table S3). However, for nonexcitable HeLa cells, we expect that the net contribution of an ICG-induced local membrane potential change is negligible as the tip pore size is very small. It may not be however negligible for excitable cells, because a local membrane potential change would trigger the opening of voltage-gated sodium ion channels and thus generate action potential, which would propagate over the cell membrane. A quantitative estimation for this possibility is beyond the scope of the present study. Nevertheless, our FEM simulations indicate that the ICG-induced local membrane potential change can be attenuated by the use of different V_b values and/or high concentration of NaCl solution instead of 4M KCl solution (supplementary material, SI 3, Table S4).

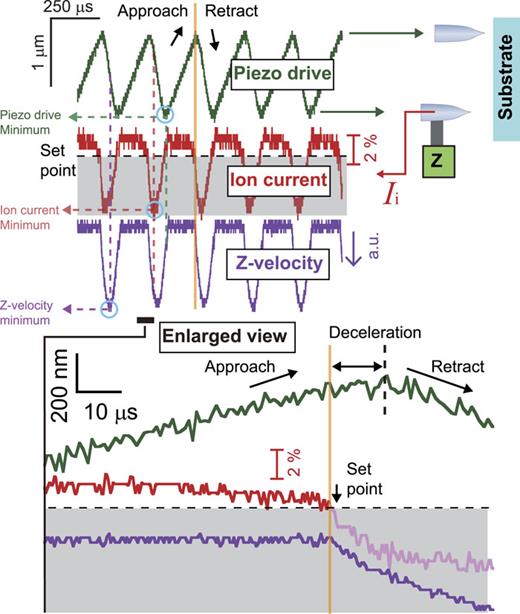

Here we describe a quantitative evaluation of how significantly the pipette approach velocity is improved by the ICG method and the developed Z-scanner. Besides, we describe a problem we have encountered during this evaluation. For this evaluation, the pipette filled with 4M KCl was vertically moved above the glass substrate in the 0.15M KCl solution (the Z-displacement and its velocity are shown with the green and purple lines in Fig. 5, respectively), while the ion current was measured using the transimpedance amplifier with B_id = 400 kHz. For the initiation of ∼1.3 μm retraction of the pipette by feedback control, the set point of the ion current was set at 98% of the reference ion current (i.e., 2% reduction). In the approaching regime, the ion current decreased as the tip was in close proximity to the surface (red line in Fig. 5). However, in the retraction regime following the deceleration phase, the detected ion current behaved strangely; I_i initially decreased instead of increasing and then reversed the changing direction, similar to the behavior of the pipette Z-velocity (supplementary material, SI 6, Fig. S10). We confirmed that this abnormal response of I_i was due to a leakage current caused by a capacitive coupling between the Z-piezoactuator and the signal line detecting I_i. We could mitigate this adverse effect by subtracting the gain-controlled Z-velocity signal from the measured I_i (Fig. S10). Although this abnormal response could not be completely cancelled as shown with the pink line in the shaded region of Fig. 5, it affected neither the feedback control nor the SICM imaging. This is because the I_i signal in the retraction regime is not used in the operation of SICM. In the repeated approach and retraction experiments with the use of the ICG method (Fig. 5), we achieved $v$_z = 7.3 μm/ms for r_a = 25 nm, corresponding to 63% of the value estimated as 2 × 25 nm/[1.8 µs + (400 kHz)⁻¹] = 11.6 μm/ms. This $v$_z value attained here represents more than 300 times improvement over the $v$_z value used in a recent SICM imaging study on biological samples (50 nm/ms for r_a = 50 nm) with a conventional design of the SICM Z-scanner.³⁴ Very recently, the Schäffer group successfully increased $v$_z up to 4.8 μm/ms for r_a = 80–100 nm using their sample stage scanner and a step retraction sequence called “turn step.”⁴⁰ Our $v$_z value achieved for even 3–4 times smaller r_a still surpasses their result. We emphasize that the leakage of high salt to the outside of the tip is too small to change the bulk concentrations of the ions outside and inside the tip. In addition, the region of ICG is confined to the vicinity of the tip for V_b values (|V_b| ≤ 0.1 V) typically used in SICM measurements [Figs. 3(d) and 3(e)], and, therefore, the sample remains in the bath salt condition most of time as the time when the sample stays within a distance of ∼2 × r_a from the tip opening is very short (∼10 µs).

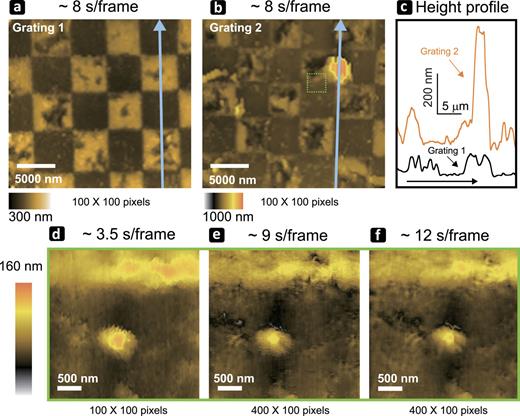

We evaluated the performance of our HS-SICM system by capturing topographic images of a sample made of polydimethylsiloxane, which had a periodic 5 × 5 μm² checkerboard pattern with a height step of 100 nm (Grating 1). For this imaging in hopping mode, we used r_a = 5–7.5 nm and B_id = 100 kHz, values smaller than those used in the above evaluation test. Therefore, we reduced $v$_z to 150–550 nm/ms. Other imaging conditions are V_b = −0.3 V and number of pixels = 100–400 × 100. Figure 6(a) shows a topographic image of Grating 1 captured at 8 s/frame over a 25 × 25 μm² area with 100 × 100 pixels. Figure 6(b) shows a topographic image of a rougher surface area of another grating sample (Grating 2) containing an object with a height of ∼500 nm [Fig. 6(c)]. Even for this rougher surface, its imaging was possible at 8 s/frame. Figures 6(d)–6(f) show images of a narrower area of Grating 2 marked with the small rectangle in Fig. 6(b), captured at 3.5, 9 and 12 s/frame, respectively. Although fine structures were more visible in the images captured at 9 and 12 s/frame, this difference was not due to the lower imaging rates but due to the larger number of pixels. The averaged pixel rates were 2.85, 4.44, and 3.33 kHz for Figs. 6(d)–6(f), respectively, demonstrating high temporal and spatial resolution of our HS-SICM. Note that the imaging rate depends not only on $v$_z and a number of pixels but also on the hopping amplitude, the hopping rate, and the performance of the lateral movement of our scanner. In the supplementary material, Fig. S11, we show examples of images captured at higher rates (∼4 and ∼0.3 s/frame).

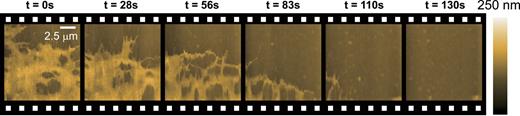

Next, we examined the applicability of our HS-SICM system to biological samples. The first test sample is a live HeLa human cervical cancer cell. The imaging was carried out in hopping mode using a pipette with r_a = 5–7.5 nm, B_id = 100 kHz, and V_b = −0.1 V. Figure 7 shows topographic images of a peripheral edge region of a HeLa cell locomoting on a glass substrate in a phosphate buffer saline (PBS), captured at 20–28 s/frame with 200 × 100 pixels for a scan area of 12 × 12 μm². During the overall downward locomotion until the cell disappears from the imaging area within 2 min, the sheetlike structures (lamellipodia) with ∼100 nm height were observed to grow and retract. In this imaging, the pixel rate was 670–1000 Hz, making a large contrast with the pixel rate of ∼70 Hz used in the previous hopping-mode-SICM imaging of live cells without significant surface roughness.^34,35 Additional HS-SICM images capturing the movement of a HeLa cell in a peripheral edge region are provided in Figs. S12 and S13 (supplementary material, SI 7). Bright-field optical microscope images before and after these SICM measurements are also provided in Fig. S14. In these imaging experiments, r_a = 2–3 nm, B_id = 20 kHz, V_b = 70 mV, pixel rate = 250 Hz, and hopping amplitude = 350 nm are used.

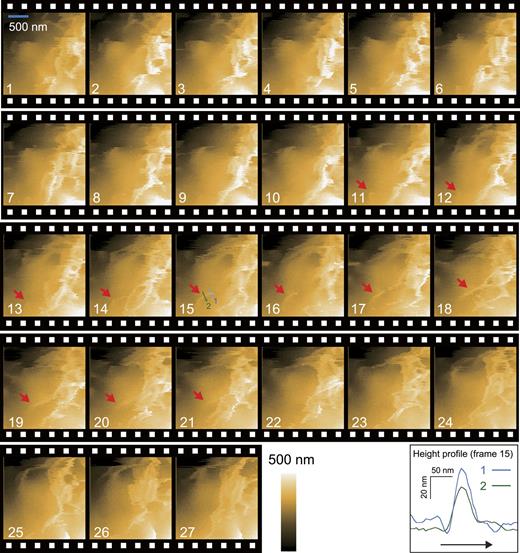

To demonstrate the applicability of our HS-SICM system also to live cells with significant surface roughness, we next imaged a central region (2 × 2 μm²) of a HeLa cell at 22 s/frame, using pipettes with r_a = 5–7.5 nm, B_id = 100 kHz, V_b = −0.2 V, and hopping amplitude of 600 nm (Fig. 8 and supplementary material, Movie 1). The captured images show moving, growing, and retracting microvilli with straight-shaped and ridgelike structures.^5,39,58 The red arrows on frames 11–21 in Fig. 8 indicate the formation and disappearance of a single microvillus. During this dynamic process captured with a pixel rate of 0.56 kHz, the full width at half maximum (FWHM) of the microvillus was less than 50 nm (lower right in Fig. 8), when it was analyzed for frame 15 (FWHM values of traces 1 and 2 are 38.8 ± 10.2 nm and 42.3 ± 10.2 nm, respectively). These values are less than the single pixel resolution in the previous SICM measurements (100–200 nm).^5,39 As demonstrated here, we can get SICM images with a higher spatial resolution without scarifying the temporal resolution, as shown in Table I (compare the values of pixel rate and r_a among the three studies with respective HS-SICM systems developed).

In Figs. 7 and 8, slight discontinuities of images appear as noises between adjacent fast scan lines. In contrast, there are no such discontinuities in the images of stationary grating samples [Fig. 6(a)] captured with an even higher imaging rate than those used in Figs. 7 and 8. Moreover, during these imaging experiments, significant ion current reductions that could be caused by tip-sample contact³⁹ were not observed. Therefore, we speculate that the image discontinuities that appeared in the images of live HeLa cells are due to autonomous movement of the cells and the small pipette aperture; the small movements of HeLa cells that cannot be detected with a large aperture pipette (r_a ∼ 100 nm) appear in our high resolution images.

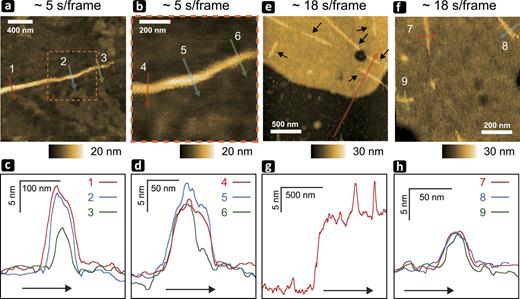

Next, we performed HS-SICM imaging of the actin filaments of ∼7 nm in diameter, under the conditions of r_a = 5–7.5 nm, B_id = 100 kHz, V_b = −0.2 V, pixel rate of 556–2000 Hz, and hopping amplitude of 100–250 nm. Figure 9(a) shows a topographic image captured at ∼5 s/frame of an actin filament specimen placed on a glass substrate coated with positively charged aminopropyltriethoxysilane. Figure 9(b) shows its enlarged image for the area shown with the red rectangle in Fig. 9(a). The image exhibited a height variation along the filament, as indicated in Figs. 9(c) and 9(d). The measured height obtained from arrow position 3 is ∼7 nm. However, the measured heights obtained from arrow positions 1, 2, 4, 5, and 6 were around 14 nm. These results may indicate that the specimen partly contains two vertically stacked actin filaments. The measured FWHM was 38.1 ± 4.2 nm for arrow position 3. This value is 5 times larger than the diameter of an actin filament. This result can be explained by the side wall effect;⁶⁰ the tip wall thickness, i.e., r_o − r_a, would expand the diameter of a small object measured with SICM.⁵⁹ The side wall effect also explains that the measured FWHMs for arrow positions 1 (66.0 ± 2.6 nm) and 2 (50.6 ± 3.7 nm) were larger than that for arrow position 3. Despite the pixel size of 8 × 8 nm², the 36 nm crossover repeat of the two-stranded actin helix could not be resolved. This is not due to insufficient vertical resolution but due to insufficient lateral resolution of the pipette used.

Next, we used mica-supported neutral lipid bilayers containing biotin-lipid, instead of using the amino silane-coated glass substrate to avoid possible bundling of the actin filaments on the positively charged surface. Figures 9(e) and 9(f) show the images captured at 18 s/frame for the partially biotinylated actin filaments immobilized on the lipid bilayers through streptavidin molecules with a low surface density. The measured heights of these filaments were ∼6 to 7 nm [Figs. 9(g) and 9(h)]. However, the measured height of the lipid bilayer was ∼13 nm from the mica surface (Fig. 9), much larger than the bilayer thickness of ∼5 nm.⁶¹ This large measured thickness is possibly due to the sensitivity of I_i to negative charges on the mica surface.^15,19–21 The surface charges of objects can change d_c even at constant V_b and a constant set point,²⁰ which can provide measured height largely deviating from the real one. In the high resolution image of the immobilized filaments [Fig. 9(f)], the measured value of FWHM was 33.3 ± 6.0 nm [Fig. 9(h)].

As demonstrated here, our HS-SICM enables fast imaging of the molecules without sacrificing the pixel resolution, unlike previous studies.^34,35 When the number of pixels was reduced to 50 × 50, we could achieve sub-second imaging for a low-height sample. Movie 2 in the supplementary material captured at 0.9 s/frame with 50 × 50 pixels over a 0.8 × 0.8 μm² area shows high fluidity-driven morphological changes of polymers formed from a silane coupling agent placed on mica.

Finally, we discuss further possible improvements of HS-SICM towards higher spatiotemporal resolution. The speed performance of SICM can be represented by the value of pixel rate divided by r_a (we abbreviate this quantity as PRDA), because of a trade-off relationship between the temporal resolution and the spatial resolution. In Table I, PRDA values of our HS-SICM imaging are shown, together with those of HS-SICM imaging in other labs. Although PRDA depends on sample height, our HS-SICM system sets a highest record, PRDA = 95–200 Hz/nm, in the imaging of a peripheral edge region of a HeLa cell. This record was attained by two means: the ICG method granting the high SNR of current detection and the high resonance frequency of the Z-scanner. Since we have not yet introduced other devices proposed previously for increasing the temporal resolution, there is still room for further speed enhancement. One of candidates to be added is (i) the “turn step” procedure (applying a step function to the Z-piezodriver) developed by Simeonov and Schäffer for rapid pipette retraction.⁴⁰ Other candidates would be (ii) further current noise reduction of the transimpedance amplifier in a high frequency region and (iii) lock-in detection of AC current produced by modulation of the pipette Z-position with a small amplitude.¹² Since our Z-scanner has a much higher resonance frequency than ever before, we will be able to use high-frequency modulation (∼100 kHz) to achieve a faster lock-in detection of AC current. For higher spatial resolution, we need to explore methods to fabricate a pipette with smaller r_a and r_o, without significantly increasing R_p. One of the possibilities would be the use of a short carbon nanotube inserted into the nanopore of a glass pipette with low R_p.

HS-SICM has been desired to be established not only to improve the time efficiency of imaging but also to make it possible to visualize dynamic biological processes occurring in very soft, fragile, or suspended (not on a substrate) samples that cannot be imaged with HS-AFM. As demonstrated in this study, the fast imaging capability of SICM can be achieved by the improvement of speed performances of pipette Z-positioning and ion current detection. The former was attained by the new Z-scanner and implementation of vibration damping techniques to the Z-scanner. The latter was attained by the minimization of the total capacitance at the amplifier input and by the reduction of R_p achieved with the ICG method, resulting in an increased SNR of ion current detection. The resulting $v$_z reached 0.55 μm/ms for r_a = 5–7.5 nm and 7.3 μm/ms for r_a = 25 nm. The value of 7.3 μm/ms is larger than the recent fastest record achieved by Simeonov and Schäffer: 4.8 μm/ms for r_a = 80–100 nm. Consequently, the highest possible imaging rate was enhanced by ∼100 times, compared to conventional SICM systems. Even the sub-second imaging is now possible for a scan area of 0.8 × 0.8 μm² with 50 × 50 pixels, without compromise of spatial resolution. The achieved speed performance will contribute to the significant extension of SICM application in biological studies.

We prepared the pipettes by pulling laser-heated quartz glass capillaries, QF100-70-7.5 (outer diameter, 1.0 mm; inner diameter, 0.50 mm; with filament) and Q100-30-15 (outer diameter, 1.0 mm; inner diameter, 0.30 mm; without filament), from Sutter Instrument, using a laser puller (Sutter Instrument, P-2000). Just before pulling, we softly plasma-etched for 5 min at 20 W under oxygen gas flow (120 mTorr), using a plasma etcher (South Bay Technology, PE2000) to remove unwanted contamination inside the pipette. The size and cone angle of each pipette tip were estimated from its scanning electron micrographs (Zeiss, SUPRA 40VP), transmission electron micrographs (JOEL, JEM-2000EX), and measured electrical resistance. The pipettes prepared from QF100-70-7.5 were used for the conductance measurement shown in Fig. 3(c).

The Z-scanner displacement was measured with a laser vibrometer (Polytech, NLV-2500 or IWATSU, ST-3761). The transfer function characterizing the Z-scanner response was obtained using a network analyzer (Agilent Technology, E5106B). A squarelike-waveform voltage generated with a function generator (NF, WF1948) and then amplified with a piezodriver (MESTECK, M-2141; gain, ×15; bandwidth, 1 MHz) was used for the measurement of time domain response of the Z-scanner.

To evaluate the enhancement of pipette conductance (1/R_p) by ICG, we prepared a pair of pipettes simultaneously produced from one pulled capillary, which exhibited a difference in r_a less than ±10%, as confirmed by electrical conductance measurements under an identical condition. One of the pair of pipettes was applied to a conductance measurement under ICG, while the other was applied to a conductance measurement without ICG. To obtain each plot in Fig. 3(c), we measured 1/R_p for more than 5 sets of pipettes. To avoid the nonlinear current-potential problem arising from an ion current rectification effect, we used V_b ranging between −10 mV and 10 mV.

To obtain the approach curves (I_i vs d) shown in Fig. 4(a), a digital 6th-order low-pass filter was used with a cutoff frequency of 10 kHz. After the measurement of each curve under V_b = 0.1 V, the pipette was moved to a Z-position where the ion current reduction by 5% had been detected in the approach curve just obtained. Next, the cut-off frequency of the low-pass filter was increased to 400 kHz for the measurement of fast ion current response and V_b was set at a measurement value. Then, the experiment shown in Fig. 4(b) was performed. This series of measurements was repeated under different values of V_b with/without ICG. The identical pipette was used through the experiments to remove variations that would arise from varied pipette shapes. After completing the experiments without ICG, the KCl solution inside the pipette was replaced with a 4M KCl solution by being immersed the pipette in a 4M KCl solution for a sufficiently long time (>60 min). The R_p value of the pipette with ICG prepared in this way was confirmed to be nearly identical to that of a similar pipette filled with a 4M KCl solution from the beginning.

The HS-SICM apparatus used in this study was controlled with home-written software built with Labview 2015 (National Instruments), which was also used for the data acquisition and analysis. The HS-SICM imaging head includes the XYZ-scanner composed of AE0505D08D-H0F and AE0505D08DF piezoactuators for the Z and XY directions (both NEC TOKIN), respectively, as shown in Fig. 2(a). The Z- and XY-piezoactuators were driven using M-2141 and M-26110-2-K piezodrivers (both MESTEK), respectively. The overall control of the imaging head was performed with a home-written FPGA-based system (NI-5782 and NI-5781 with NI PXI-7954R for the Z- and XY-position control, respectively; all National Instruments). For coarse Z-positioning, the imaging head was vertically moved with an MTS25-Z8 stepping-motor-based linear stage (travel range, 25 mm; THORLABS). For the FF control, FPGA-integrated circuits were used, while homemade analog circuities were used for FB and noise filtering. The sample was placed onto the home-built XY-coarse positioner with a travel range of 20 mm, which was placed onto an ECLIPSE Ti-U inverted optical microscope (Nikon). The ion current through the tip nanopore was detected via transimpedance amplifiers CA656F2 (bandwidth, 100 kHz; NF) and LCA-400K-10M (bandwidth, 400 kHz; FEMTO). A WF1948 function generator (NF) was used for the application of tip bias potential.

The tip was approached to the surface with $v$_z (0.05–7 μm/ms) until the ion current reached a set point value. The set point was set at 1%–2% reduction of the “reference current” flowing when the tip was well far away from the surface (10–100 pA when the ICG method was adopted). The voltage applied to the Z-scanner yielding the set point current was recorded as the sample height at the corresponding pixel position. Here, the output from the transimpedance amplifier was high-pass-filtered at 5–1000 Hz to suppress the effect of current drift on SICM imaging. Then, the pipette was retracted by a hopping distance (20 nm–50 μm within 20–50 µs), depending on the hopping amplitude, during which the pipette was moved laterally towards the next pixel position. After full retraction, the tip approaching was performed again. Through all the HS-SICM experiments, the pipette resistance did not show a significant change, indicating no break of the pipette tip during scanning.

The value of FWHM was calculated from five height profiles of each HS-SICM image. The error of FWHM was estimated from the standard deviation.

Cover slips (Matsunami Glass, C024321) cleaned with a piranha solution for 60 min at 70 °C were used as a glass substrate.

HeLa cells were cultured in Dulbecco’s Modified Eagle’s Medium (Gibco) supplemented with 10% fetal bovine serum. The cells were deposited on a metal-alumina-silicon (MAS)-coated glass (Matsunami Glass, S9441) and maintained in a humidified 5% CO₂ incubator at 37 °C until observation. Then, the culture medium was changed to phosphate buffer saline (Gibco, PBS). Then, the HS-SICM measurements were performed at room temperature.

HeLa cells were seeded on plastic dishes (AS ONE, 1-8549-01) in Dulbecco’s Modified Eagle’s Medium (Gibco) supplemented with 10% fetal bovine serum. The cells were incubated at 37 °C with 5% CO₂ and measured by HS-SICM 3–4 days after seeding. Before the HS-SICM measurements, the culture medium was changed to phosphate buffer saline (Gibco, PBS). The HS-SICM measurements were performed at room temperature.

The glass surface was first coated with (3-aminopropyl) triethoxysilane (APTES; Sigma Aldrich). Then, a drop (12 μl) of actin filaments prepared according to the method⁶² and diluted to 3 μM in Buffer A containing 25 mM KCl, 2 mM MgCl₂, 1 mM EGTA, and 20 mM imidazole-HCl (pH 7.6) was deposited to the glass surface and incubated for 15 min. The unattached actin filaments were washed out with Buffer A.

The mica surface was coated with lipids containing 1,2-dipalmitoyl-sn-glycero-3-phosphocholine (DPPC) and 1,2-dipalmitoyl-sn-glycero-3-phosphoethanolamine-N-(cap biotinyl) (biotin-cap-DPPE) in a weight ratio of 0.99:0.01, according to the method.⁶³ The partially biotinylated actin filaments in Buffer A prepared according to the method⁶⁴ were immobilized on the lipid bilayer surface through streptavidin with a low surface density. The unattached actin filaments were washed out with Buffer A.

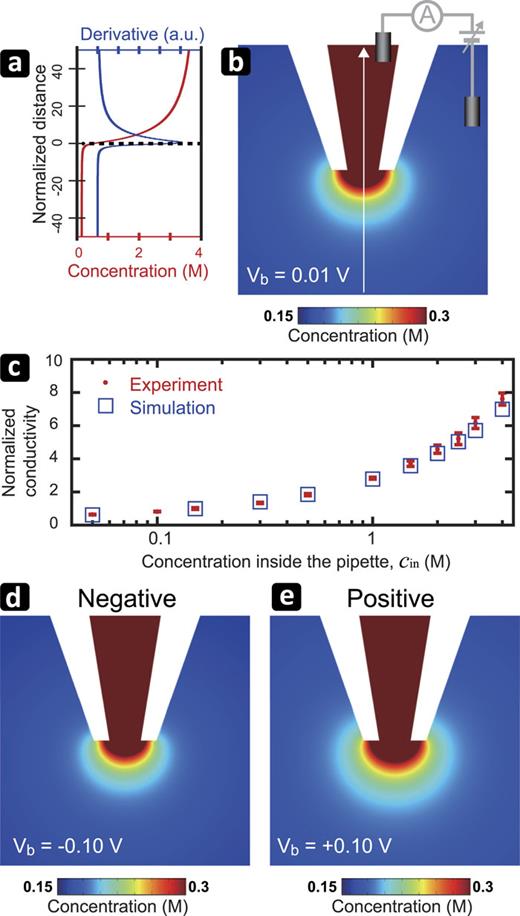

We employed three-dimensional FEM simulations to study the electrostatics and ionic mass transport processes in the pipette tip with ICG. In the simulation, we used the rotational symmetry along the pipette axis to reduce the simulation time. Complete details are given in the supplementary material, SI 3. Briefly, the following equations were solved numerically:

The Poisson equation [see Eq. (4)] describes the electrostatic potential V and the electric field with a spatial charge distribution in a continuous medium of permittivity ε containing the ions j of concentration c_j and charge Z_j. F and ε₀ are the Faraday constant and the vacuum permittivity, respectively. We assume that the movement of the tip is sufficiently slow not to agitate the solution, and thus, the time-independent Nernst–Planck equation, Eq. (5), holds, where J_j, D_j(c), R, and T are the ion flux concentration of j, the concentration-dependent diffusion constant of j, the gas constant, and the temperature in kelvin, respectively. This equation describes the diffusion and migration of the ions. The boundary condition for Eq. (5) is determined so that a zero flux or a constant concentration condition is satisfied. On the other hand, the boundary conditions of Eq. (4) are given so that a fixed potential or the spatial distribution of the surface charge σ, as described in Eq. (6), holds. In Eq. (6), n represents the surface normal vector.
